Robotic Arm, Lego Technic version (2010)

Experimental robot arm with 4 DOF (Degrees of Freedom) plus actuator (gripper). Frame made of Lego Technic parts and aluminum sheet. Robot Gripper made of cheap Turnigy TG9e (3) servos ($1.99 each at hobbyking.com), elbow and shoulder use HiTec Servos. Parallax Propeller Proto Board used to generate the PWM signals for the Servos. A custom spin object was written to generate orchestrated servo movements with gradual acceleration and deceleration (obex.parallax.com/object/224/).

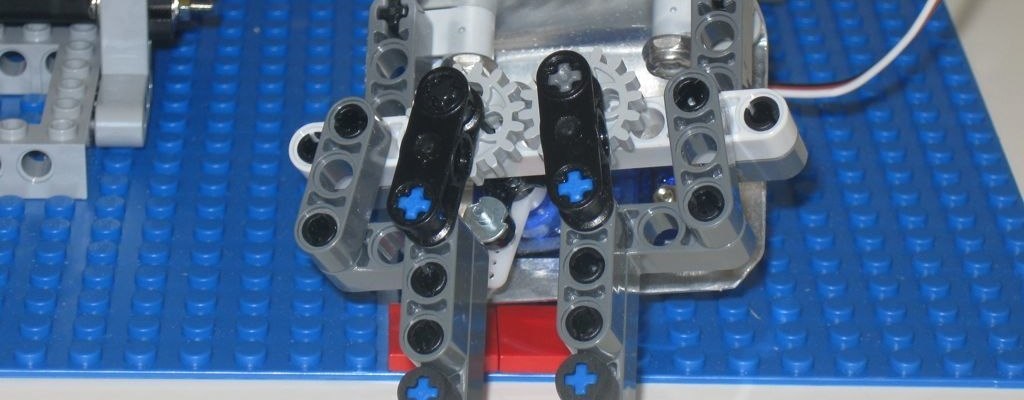

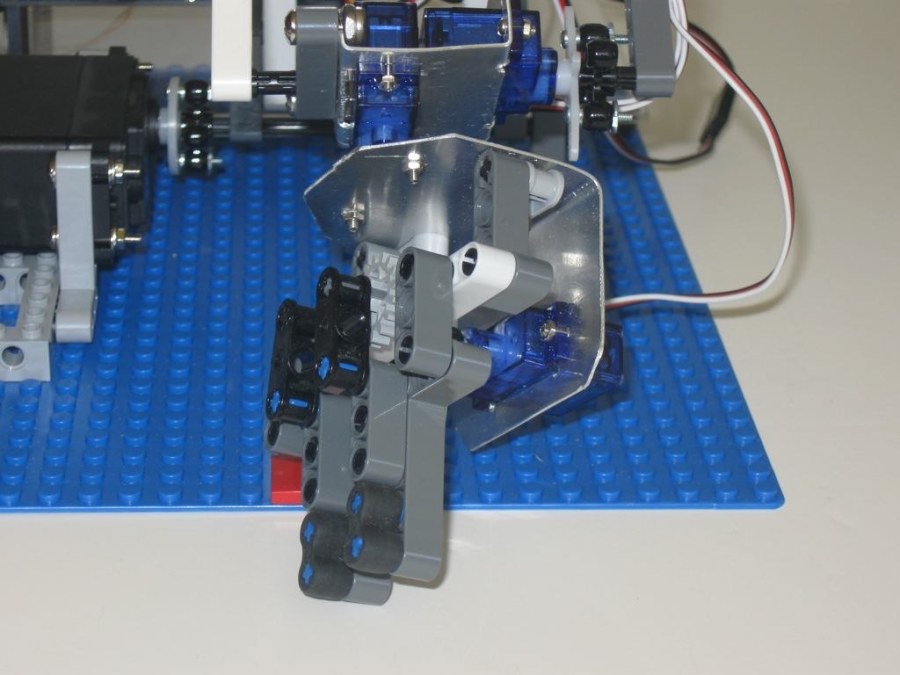

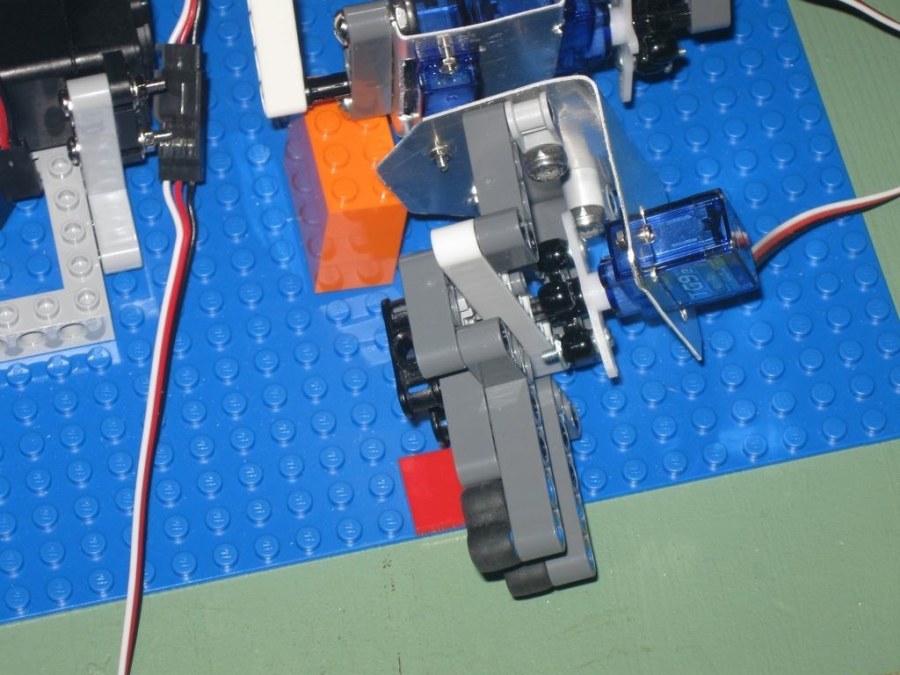

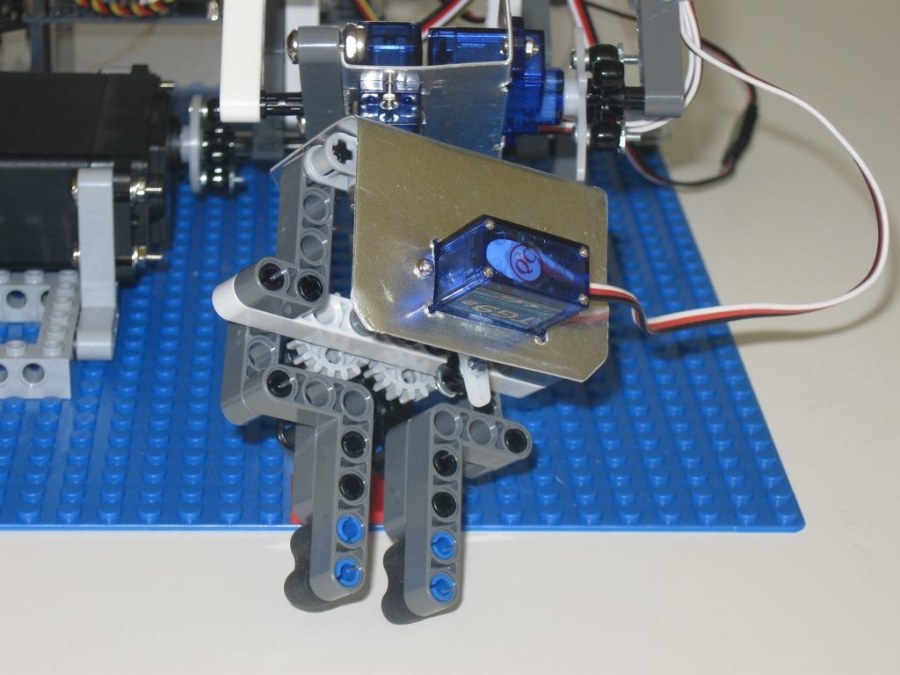

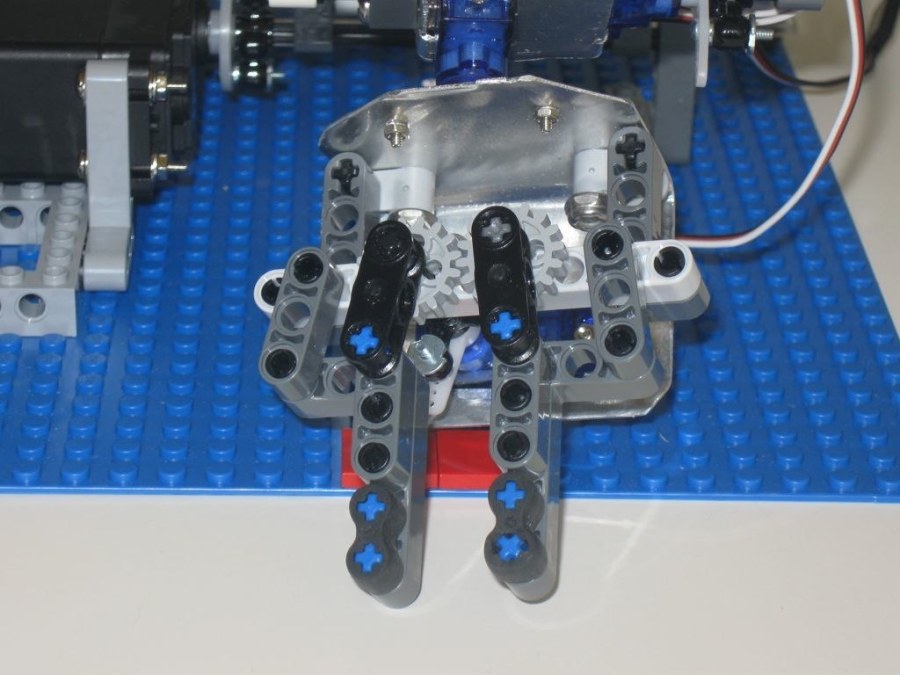

Robot Gripper made of cheap Turnigy TG9e (3) servos ($1.99 each at hobbyking.com), Lego TECHNIC parts and aluminum sheet.

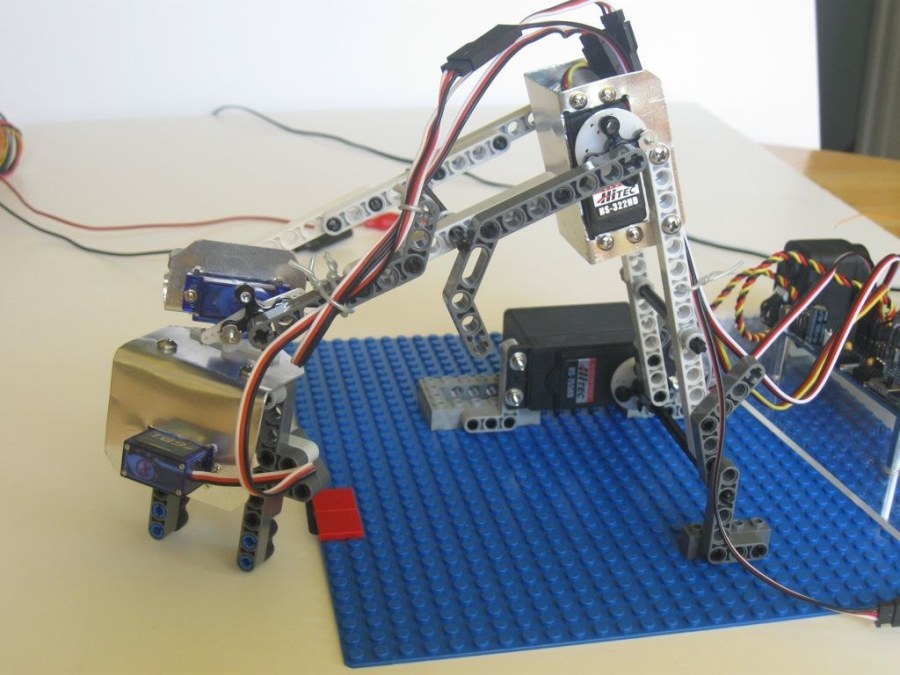

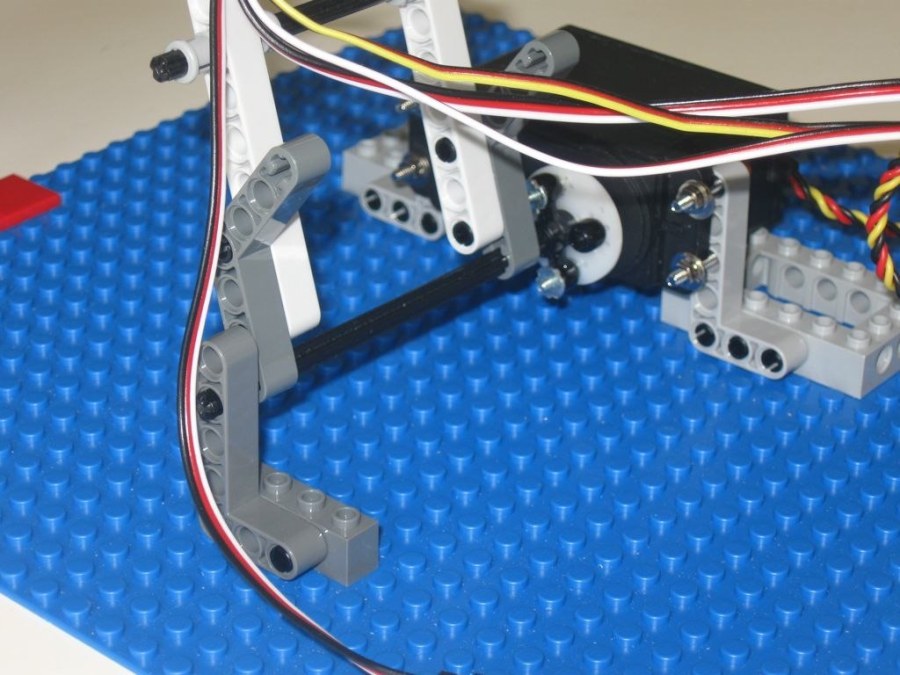

5 DOF (Degrees of Freedom), elbow and shoulder use HiTec Servos.

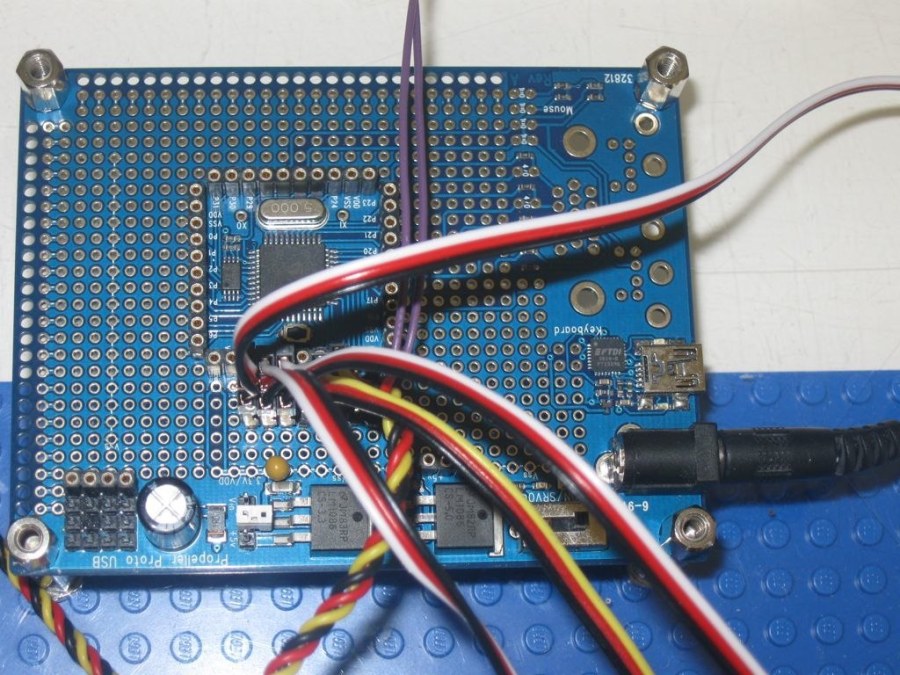

Parallax Propeller Proto Board used to generate the PWM signals for the Servos. Custom object with gradual acceleration and deceleration used (http://obex.parallax.com/objects/604/)
